Betalight

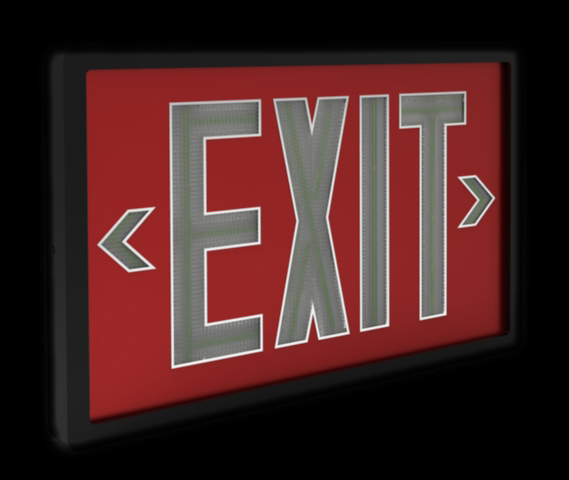

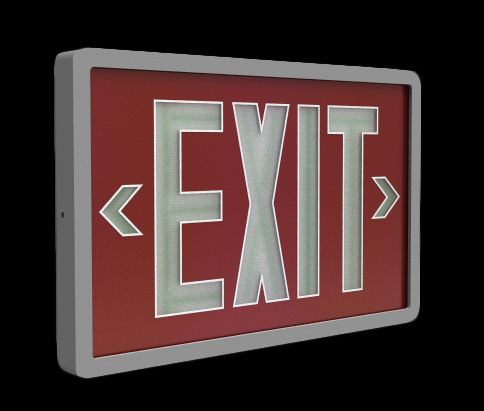

Betalux E-100 Signs

KEY FEATURES

• Vandal resistant
• Operating temperature - 60°C to +80°C
• Explosion and water proof
• Requires no wiring, totally self powered
• Field selectable direction arrows
• Installs in minutes
• Corrosion resistant
• Fail safe
• Light weight
• 10, 15 or 20 year life

Specification

Illumination source
Betalight tubes manufactured from borosilicate (hard) glass internally coated with zinc sulfide phosphor and filled with tritium gas. No electrical energy source required.

Brightness

Minimum initial brightness at time of manufacture of 0.15 foot lambert. Brightness variation between letters does not exceed a ratio of 3 to 2 .

Construction

Cased in high impact ABS fire-retardant plastic, with matte clear lexan cover. Face covers: red, green, or black. Case colors: Gray, white or black.

Arrow design

Universal arrow configuration, selectable at time of installation.

Mounting fixture design

Universal mounting bracket allows for flush ceiling, surface or side mounting. All mounting hardware is tamper- proof.

Dimensions

Length: 393 mm
Height: 215 mm
Thickness: 25 mm

Product Approval

•  NFPA Life Safety Code 101
•  U.L. 924
•  City of Los Angeles
•  State of California
•  Council of American Building Officials ( ICBO, SBCCI )
•  OSHA
•  USNRC
•  ISO 9001
