Military Shelter Lighting
A range of products for use in tents and hard-walled shelters such as ground stations,
communications centres, storage containers and military field hospitals.

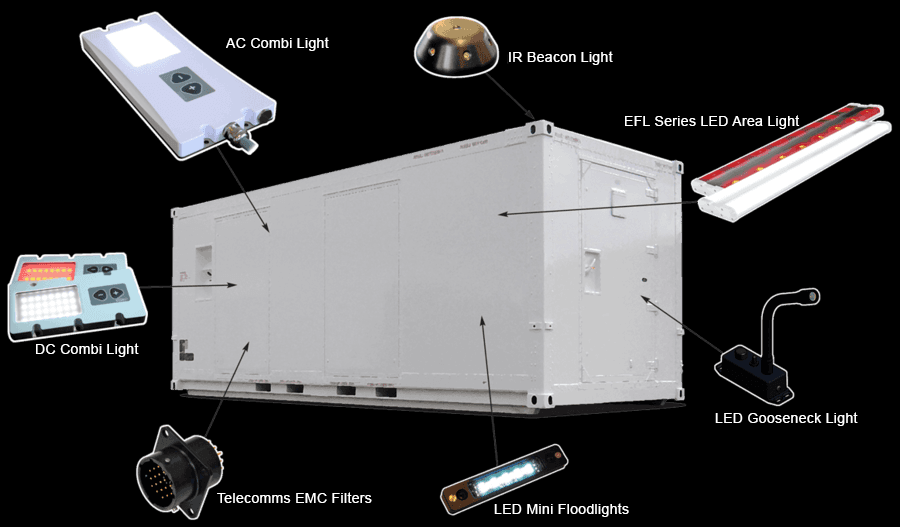

Solutions include the AC Combi light and the EFL flat light; these both incorporate dimming
control and a tactical blackout mode.
The AC Combi light is a high performance area light; it is designed to replace fluorescent
tubes and offers maximum power savings. The light requires 30W input and provides 2600
lumens output. The light has a dimming function and optional features to meet all customer
requirements from a regular white light to a fully functioning combi light. The unit is
specifically designed for mobile shelter and tent applications and meets stringent standards
on EMC emissions, and shock & vibration requirements. The light is also available with a
battery back-up mode.
The EFL series offers a high reliability rugged & durable area light, the low profile design is
available in a range of size options. The EFL is designed to deliver power savings and
improved MTBF over fluorescent tubes and the units can be used as part of an emergency
lighting system. The EFL features external dimming control and is available with a secondary
green, blue or red option.
A unique blended polycarbonate diffuser reduces the effect of 'LED hotspots' producing a
more habitable environment. The EFL series is designed to be surface or recess mounted
onto a solid substrate for naval or hard shelter applications, or mounted via webbing for tent
and soft shelter installation.
The units are designed to be surface or recess mounted for hard shelter applications, or
attached via webbing for tent and soft shelter use.
Features of the EFL Series LED Area Light
- High reliability
- Rugged, durable construction
- Dual colour mode
- Sealed to IP56
- MTBF 50000 hours
- NVG Friendly
- ROHS compliant
- Designed to meet MIL-STD-461 & DEFSTAN 59-411
- Colour temperature 4500-6000K (warm white light version also available)
- Case touch temperature max 60°C (140°F)
- Operating temperature range -40°C to 50°C (-40°F to -122°F)
- Storage temperature range -40°C to 70°C (-40°F to -158°F)"
